EMB09N03G Datasheet - Excelliance MOS

EMB09N03G N-Channel Logic Level Enhancement Mode Field Effect Transistor

N‐Channel Logic Level Enhancement Mode Field Effect Transistor Product Summary: BVDSS 30V D RDSON (MAX.) 9.5mΩ ID 14A G UIS, Rg 100% Tested S Pb‐Free Lead Plating & Halogen Free EMB09N03G ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate‐Source Voltage Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C Avalanche Current Avalanche Energy L = 0.1mH, ID=14A, RG=25Ω Repetitive Avalanche Energy2 L = 0..

EMB09N03G Datasheet (185.80 KB)

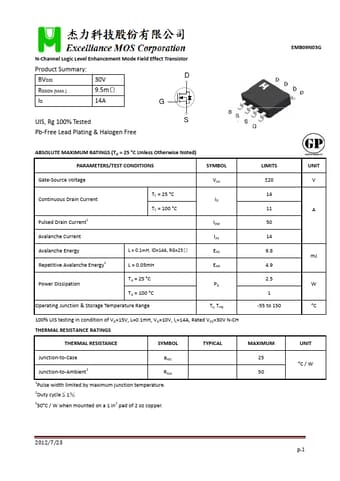

Preview of EMB09N03G PDF
EMB09N03G Datasheet Preview Page 2 EMB09N03G Datasheet Preview Page 3

Datasheet Details

Part number:

EMB09N03G

Manufacturer:

Excelliance MOS

File Size:

185.80 KB

Description:

N-channel logic level enhancement mode field effect transistor.
