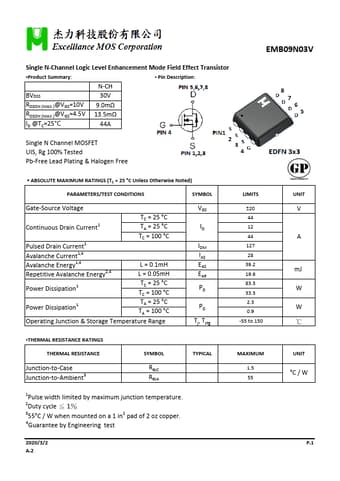

EMB09N03V Datasheet, Transistor, Excelliance MOS

PDF File Details

Part number:

EMB09N03V

Manufacturer:

Excelliance MOS

File Size:

446.02kb

Download:

📄 Datasheet

Description:

Single n-channel logic level enhancement mode field effect transistor. N-CH BVDSS 30V RDSON (MAX.)@VGS=10V RDSON (MAX.)@VGS=4.5V ID @TC=25℃ 9.0mΩ 13.5mΩ 44A Single N Channel MOSFET UIS, Rg 100% Tes
