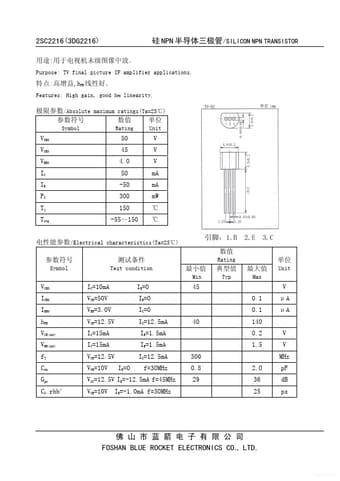

High gain, good hFE linearity. /Absolute maximum ratings(Ta=25℃)
Symbol Rating Unit
VCBO VCEO VEBO IC IE PC Tj Tstg
50 45 4.0 50 -50 300 150 -55～150
V V V mA mA mW ℃ ℃
/Electrical characteristics(Ta=25℃)
Symbol
Test condition
Rating
Max Unit
Min
Typ
VCEO ICBO IEBO hFE VCE(sat) VBE(sat) fT Cob Gpe CC. rbb′
IC=10mA VCB=50V VEB=3.0V VCE=12.5V IC=15mA IC=15mA VCE=12.5V VCB=10V VCB=10V IE=0
IB=0 IE=0 IC=0 IC=12.5mA IB=1.5mA IB=1.5mA IC=12.5mA f=30MHz
45 0.1 0.1 40 140 0.2 1.5.
