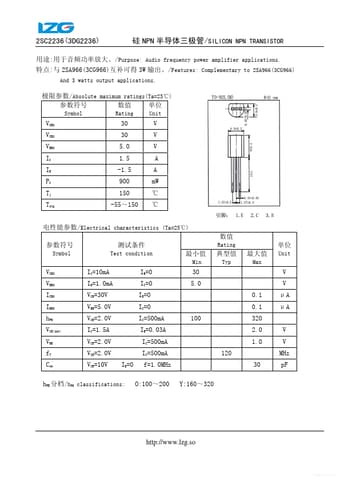

3DG2236 Datasheet, Transistor, LZG

3DG2236 Features

• Transistor Complementary to 2SA966(3CG966) And 3 watts output applications. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC IE PC Tj Tstg 30 30 5.0 1.5 -1.5 900 150 -

PDF File Details

Part number:

3DG2236

Manufacturer:

LZG

File Size:

452.24kb

Download:

📄 Datasheet

Description:

Silicon npn transistor.

3DG2236 Application

• Applications : 2SA966(3CG966) 3W 。/Features: Complementary to 2SA966(3CG966) And 3 watts output applications. /Absolute maximum ratings(Ta=25℃)

TAGS

3DG2236

LZG
