3DG2230A, 3DG2230 Datasheet - FOSHAN BLUE ROCKET

3DG2230A, 3DG2230, (3DG2230/A) SILICON NPN TRANSISTOR

2SC2230(3DG2230) 2SC2230A(3DG2230A) NPN /SILICON NPN TRANSISTOR :,/Purpose: High voltage general amplifier, color TV class B sound output applicati.

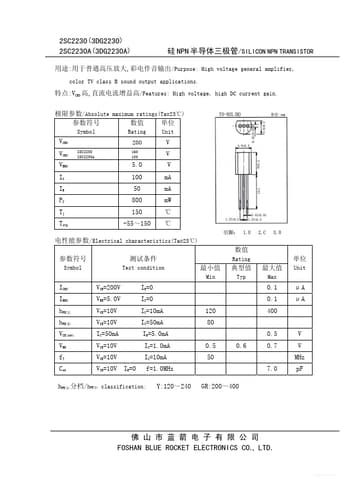

datasheet Preview Page 1 from Datasheet4u.com

3DG2230-FOSHANBLUEROCKET.pdf

3DG2230A Datasheet Preview — This datasheet PDF includes multiple part numbers: 3DG2230A, 3DG2230. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

3DG2230A, 3DG2230

Manufacturer:

FOSHAN BLUE ROCKET

File Size:

218.57 KB

Description:

(3DG2230/A) SILICON NPN TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: 3DG2230A, 3DG2230.
Please refer to the document for exact specifications by model.

Features

* High voltage, high DC current gain. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC IB PC Tj Tstg 2SC2230 2SC2230A 200 160 180 V V V mA mA mW ℃ ℃ 5.0 100 50 800 150 -55～150 /Electrical characteristics(Ta=25℃) Symbol Test condition Rating Max Unit Min Typ
