3DG2222 SILICON NPN TRANSISTOR

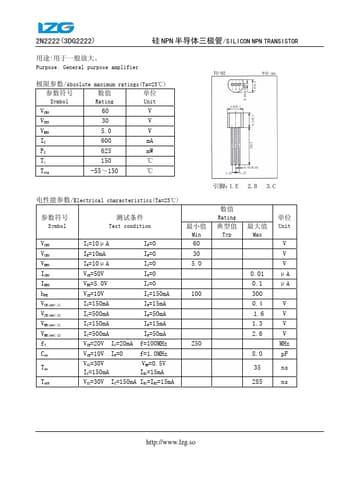

2N2222(3DG2222) NPN /SILICON NPN TRANSISTOR :。 Purpose: General purpose amplifier. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO 60 V VCEO 30 V VEBO 5.0 V IC 600 mA PC 625 mW Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics(Ta=25℃) Symbol VCBO VCEO VEBO ICBO IEBO hFE VCE(sat)(1) VCE(sat)(2) VBE(sat)(1) VBE(sat)(2) fT Cob Ton Toff Test condition IC=10μA IE=0 IE=10mA IB=0 IE=10μA IC=0 VCB=50V IE=0 VEB=5.0V IC=0 VCE=10V IC=150mA IC=150mA IB=15.
