FDB5690 - 60V N-Channel MOSFET

Name: FDB5690
SKU: FDB5690-210432

Fairchild Semiconductor

📥 Download Datasheet

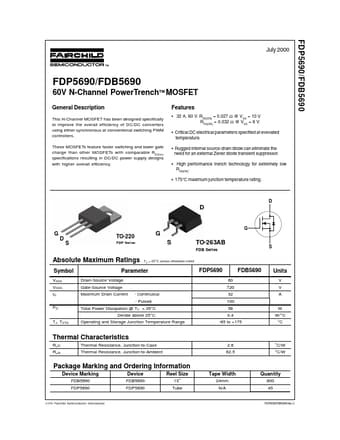

FDB5690 Datasheet Preview — Preview of FDB5690 PDF

Datasheet Details

Part number	FDB5690
Manufacturer	Fairchild Semiconductor
File Size	391.08 KB
Description	60V N-Channel MOSFET
Datasheet	FDB5690_FairchildSemiconductor.pdf

FDB5690 Product details

Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.

Features

32 A, 60 V. RDS(ON) = 0.027 Ω @ VGS = 10 V RDS(ON) = 0.032 Ω @ VGS = 6 V.
Critical DC electrical parameters specified at evevated temperature.
Rugged internal source-drain diode can eliminate the need for an external Zener diode transient suppressor.
High performance trench technology for extremely low RDS(ON).
175°C maximum junction temperature rating. D D G G D S TO-220 FDP Series G S TC = 25°C unless otherwise noted TO-263AB FDB Series.
