FDMC2523P, P-Channel QFET

www.DataSheet4U.com FDMC2523P P-Channel QFET® September 2006 FDMC2523P P-Channel QFET® -150V, -3A, 1.5: .
These P-Channel MOSFET enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology.

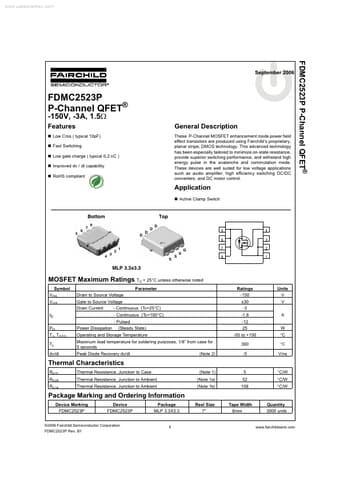

datasheet Preview Page 1 from Datasheet4u.com

FDMC2523P_FairchildSemiconductor.pdf

FDMC2523P Datasheet Preview — Preview of FDMC2523P PDF

Datasheet Details

Part number:

FDMC2523P

Manufacturer:

Fairchild Semiconductor

File Size:

197.61 KB

Description:

P-Channel QFET

Features

* Low Crss ( typical 10pF)
* Fast Switching
* Low gate charge ( typical 6.2 nC )
* Improved dv / dt capability

Applications

* such as audio amplifier, high efficiency switching DC/DC converters, and DC motor control. Application
* Active Clamp Switch Bottom 6 7 8 D D D D Top 5 6 2 1 S S S G 5 4 3 2 1 7 8 4 3 MLP 3.3x3.3 MOSFET Maximum Ratings TC = 25°C unless otherwise noted Symbol VDS VGS ID PD TJ, TSTG
