FDMC010N08LC Datasheet, Mosfet, ON Semiconductor

FDMC010N08LC Features

  • Mosfet
  • Shielded Gate MOSFET Technology
  • Max RDS(on) = 10.9 mW at VGS = 10 V, ID = 16 A
  • Max RDS(on) = 18.4 mW at VGS = 4.5 V, ID = 13 A
  • 50% Lower Qrr than

PDF File Details

Part number:

FDMC010N08LC

Manufacturer:

ON Semiconductor ↗

File Size:

380.64kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This N-Channel MV MOSFET is produced using ON Semiconductor’s advanced PowerTrench process that incorporates Shielded Gate technology

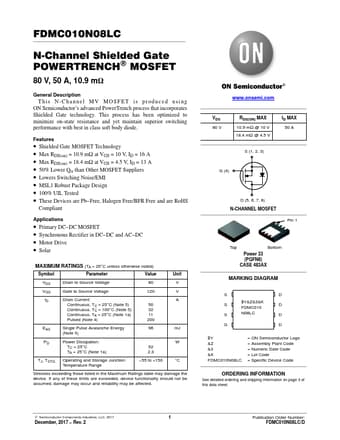

Datasheet Preview: FDMC010N08LC 📥 Download PDF (380.64kb)
Page 2 of FDMC010N08LC Page 3 of FDMC010N08LC

FDMC010N08LC Application

  • Applications
  • Primary DC
  • DC MOSFET
  • Synchronous Rectifier in DC
  • DC and AC
  • DC
  • Motor Drive
