FDMC007N08LCDC - 80V 64A N-Channel MOSFET

Datasheet Summary

Description

advanced POWERTRENCH process that incorporates Shielded Gate technology.

This process has been optimized to minimize on-state resistance and yet maintain superior switching performance with best in class soft body diode.

Features

  • Shielded Gate MOSFET Technology.
  • Max RDS(on) = 6.8 mW at VGS = 10 V, ID = 22 A.
  • Max RDS(on) = 11.1 mW at VGS = 4.5 V, ID = 18 A.
  • 5 V Drive Capable.
  • 50% Lower Qrr than Other MOSFET Suppliers.
  • Lowers Switching Noise/EMI.
  • MSL1 Robust Package Design.
  • 100% UIL Tested.
  • These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant.

📥 Download Datasheet

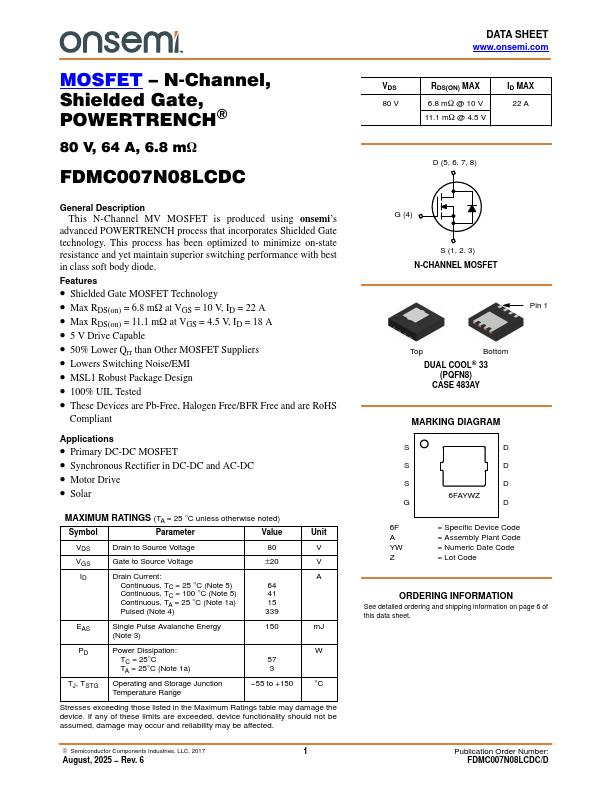

Datasheet preview – FDMC007N08LCDC

Datasheet Details

Part number FDMC007N08LCDC
Manufacturer ON Semiconductor
File Size 471.43 KB
Description 80V 64A N-Channel MOSFET
Datasheet download datasheet FDMC007N08LCDC Datasheet

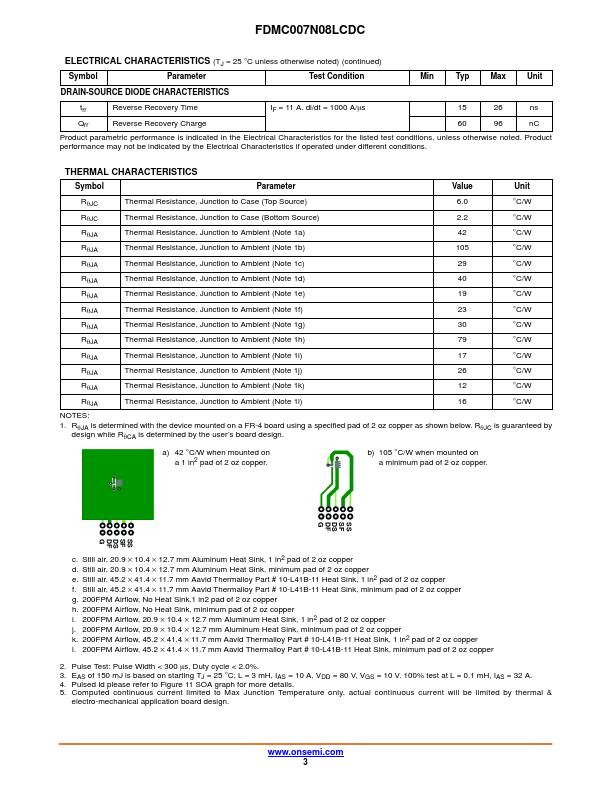

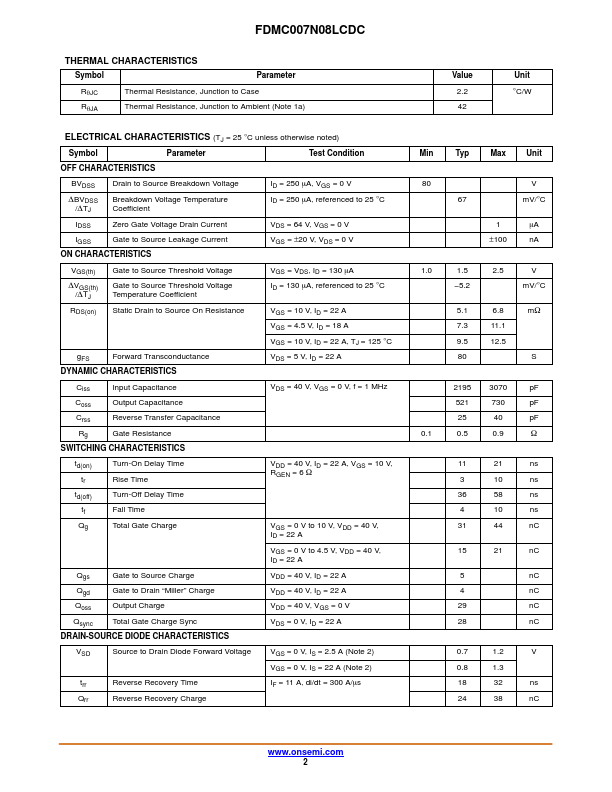

Additional preview pages of the FDMC007N08LCDC datasheet.

📁 Similar Datasheet

  • FDMC0310AS - MOSFET (Fairchild Semiconductor)
  • FDMC15N06 - N-Channel MOSFET (Fairchild Semiconductor)
  • FDMC2512SDC - N-Channel MOSFET (Fairchild Semiconductor)
  • FDMC2514SDC - N-Channel Dual Cool PowerTrench SyncFET (Fairchild Semiconductor)
  • FDMC2514SDC - N-Channel MOSFET (VBsemi)
  • FDMC2523P - P-Channel QFET (Fairchild Semiconductor)
  • FDMC2610 - N-Channel UltraFET Trench MOSFET (Fairchild Semiconductor)
  • FDMC2674 - N-Channel UltraFET Trench MOSFET (Fairchild Semiconductor)
  • FDMC3020DC - N-Channel Dual Cool PowerTrench MOSFET (Fairchild Semiconductor)
  • FDMC3300NZA - N-Channel MOSFET (Fairchild Semiconductor)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
MOSFET – N-Channel, Shielded Gate, POWERTRENCH) 80 V, 64 A, 6.8 mW FDMC007N08LCDC General Description This N-Channel MV MOSFET is produced using onsemi’s advanced POWERTRENCH process that incorporates Shielded Gate technology. This process has been optimized to minimize on-state resistance and yet maintain superior switching performance with best in class soft body diode. Features • Shielded Gate MOSFET Technology • Max RDS(on) = 6.8 mW at VGS = 10 V, ID = 22 A • Max RDS(on) = 11.1 mW at VGS = 4.
