FDMC007N30D

Dual N-Channel MOSFET

FDMC007N30D Features

* Q1: N

* Channel

* Max RDS(on) = 11.6 mW at VGS = 10 V, ID = 10 A

* Max RDS(on) = 13.3 mW at VGS = 4.5 V, ID = 9 A Q1: N

* Channel

* Max RDS(on) = 6.4 mW at VGS = 10 V, ID = 16 A

* Max RDS(on) = 7.0 mW at VGS = 4.5 V, ID = 15 A

* RoHS Compliant Appl

FDMC007N30D General Description

This device includes two specialized N

*Channel MOSFETs in a dual Power33 (3mm × 3mm MLP) package. The switch node has been internally connected to enable easy placement and routing of synchronous buck converters. The control MOSFET (Q1) and synchronous MOSFET (Q2) have been designed to provi.

FDMC007N30D Datasheet (406.86 KB)

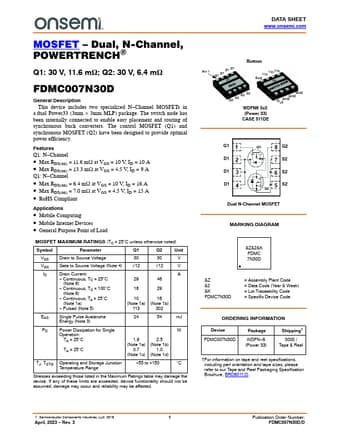

Preview of FDMC007N30D PDF

Datasheet Details

Part number:

FDMC007N30D

Manufacturer:

ON Semiconductor ↗

File Size:

406.86 KB

Description:

Dual n-channel mosfet.
