FGA60N60UFD - 60A Field Stop IGBT

Fairchild Semiconductor

The FGA60N60UFD by Fairchild Semiconductor is a 60A Field Stop IGBT. Below is the official datasheet preview.

📥 Download Datasheet

FGA60N60UFD 60A Field Stop IGBT by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FGA60N60UFD** 60A Field Stop IGBT datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FGA60N60UFD
Manufacturer	Fairchild Semiconductor
File Size	331.55 KB
Description	60A Field Stop IGBT
Datasheet	FGA60N60UFD-FairchildSemiconductor.pdf

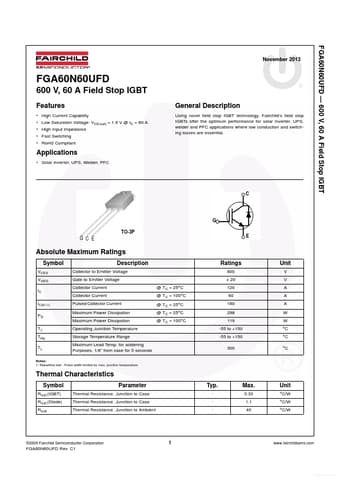

Additional preview pages of the FGA60N60UFD datasheet.

FGA60N60UFD Product details

Description

Using novel field stop IGBT technology, Fairchild’s field stop IGBTs offer the optimum performance for solar inverter, UPS, welder and PFC applications where low conduction and switching losses are essential. Solar Inverter, UPS, Welder, PFC C G TO-3P E G C E Absolute Maximum Ratings Symbol VCES VGES IC ICM (1) PD TJ Tstg TL Description Collector to Emitter Voltage Gate to Emitter Voltage Collector Current Collector Current Pulsed Collector Current Maximum Power Diss

Features

High Current Capability.
Low Saturation Voltage: VCE(sat) = 1.9 V @ IC = 60 A.
High Input Impedance.
Fast Switching.
RoHS Compliant General.
