FGA6530WDF - IGBT

Fairchild Semiconductor

The FGA6530WDF by Fairchild Semiconductor is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

FGA6530WDF IGBT by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FGA6530WDF** IGBT datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FGA6530WDF
Manufacturer	Fairchild Semiconductor
File Size	369.92 KB
Description	IGBT
Datasheet	FGA6530WDF-FairchildSemiconductor.pdf

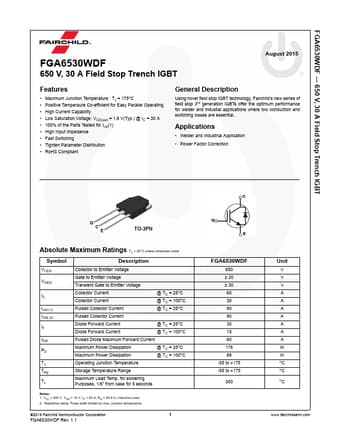

Additional preview pages of the FGA6530WDF datasheet.

FGA6530WDF Product details

Description

Using novel field stop IGBT technology, Fairchild’s new series of field stop 3rd generation IGBTs offer the optimum performance for welder and industial applications where low conduction and switching losses are essential. Welder and Industrial Application Power Factor Correction G C E TO-3PN Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Description VCES VGES IC ILM (1) ICM (2) IF IFM PD TJ Tstg TL Collector to Emitter Voltage Gate to E

Features

Maximum Junction Temperature : TJ = 175oC.
Positive Temperaure Co-efficient for Easy Parallel Operating.
High Current Capability.
Low Saturation Voltage: VCE(sat) = 1.8 V(Typ. ) @ IC = 30 A.
100% of the Parts Tested for ILM(1).
High Input Impedance.
Fast Switching.
Tighten Parameter Distribution.
RoHS Compliant General.
