FGA60N65SMD - 60A Field Stop IGBT

Fairchild Semiconductor

The FGA60N65SMD by Fairchild Semiconductor is a 60A Field Stop IGBT. Below is the official datasheet preview.

📥 Download Datasheet

FGA60N65SMD 60A Field Stop IGBT by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FGA60N65SMD** 60A Field Stop IGBT datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FGA60N65SMD
Manufacturer	Fairchild Semiconductor
File Size	446.28 KB
Description	60A Field Stop IGBT
Datasheet	FGA60N65SMD-FairchildSemiconductor.pdf

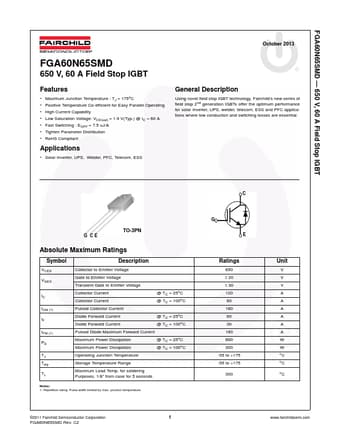

Additional preview pages of the FGA60N65SMD datasheet.

FGA60N65SMD Product details

Description

Using novel field stop IGBT technology, Fairchild’s new series of field stop 2nd generation IGBTs offer the optimum performance for solar inverter, UPS, welder, telecom, ESS and PFC applications where low conduction and switching losses are essential. Solar Inverter, UPS, Welder, PFC, Telecom, ESS C G TO-3PN G CE E Absolute Maximum Ratings Symbol VCES VGES IC ICM (1) IF IFM (1) PD TJ Tstg TL Description Collector to Emitter Voltage Gate to Emitter Voltage Transient

Features

Maximum Junction Temperature : TJ =.
High Current Capability.
Low Saturation Voltage: VCE(sat) = 1.9 V(Typ. ) @ IC = 60 A.
Fast Switching : EOFF = 7.5 uJ/A.
Tighten Parameter Distribution.
RoHS Compliant 175oC.
Positive Temperature Co-efficient for Easy Parallel Operating General.
