FQA22P10

100V P-Channel MOSFET

FQA22P10 Features

* -24A, -100V, RDS(on) = 0.125Ω @VGS = -10 V Low gate charge ( typical 40 nC) Low Crss ( typical 160 pF) Fast switching 100% avalanche tested Improved dv/dt capability 175°C maximum junction temperature rating D G TO-3P G DS FQA

FQA22P10 General Description

These P-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse i.

FQA22P10 Datasheet (637.22 KB)

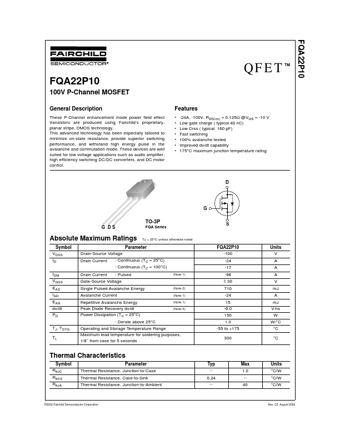

Preview of FQA22P10 PDF

Datasheet Details

Part number:

FQA22P10

Manufacturer:

Fairchild Semiconductor

File Size:

637.22 KB

Description:

100v p-channel mosfet.
