FQD13N10L Datasheet, Mosfet, Fairchild Semiconductor

FQD13N10L Features

  • Mosfet
  • 10A, 100V, RDS(on) = 0.18Ω @VGS = 10 V Low gate charge ( typical 8.7 nC) Low Crss ( typical 20 pF) Fast switching 100% avalan

PDF File Details

Part number:

FQD13N10L

Manufacturer:

Fairchild Semiconductor

File Size:

548.81kb

Download:

📄 Datasheet

Description:

100v logic n-channel mosfet. These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS techn

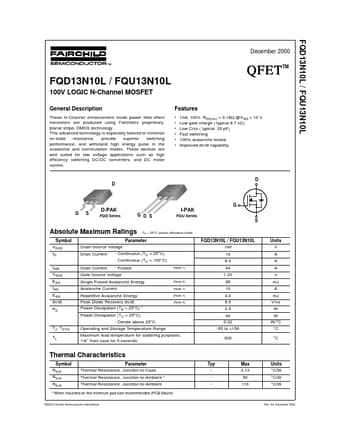

Datasheet Preview: FQD13N10L 📥 Download PDF (548.81kb)
Page 2 of FQD13N10L Page 3 of FQD13N10L

FQD13N10L Application

  • Applications such as high efficiency switching DC/DC converters, and DC motor control. TM Features
