FQD2N50B, 500V N-Channel MOSFET

FQD2N50B / FQU2N50B May 2000 QFET FQD2N50B / FQU2N50B 500V N-Channel MOSFET General .
These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology.

FQD2N50B_FairchildSemiconductor.pdf

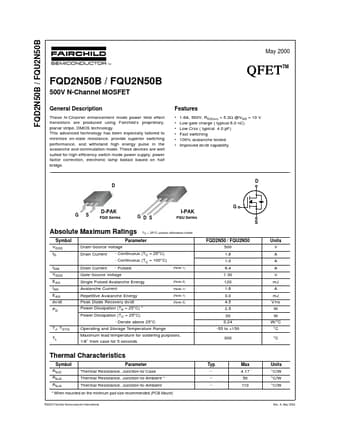

FQD2N50B Datasheet Preview — Preview of FQD2N50B PDF

Datasheet Details

Part number:

FQD2N50B

Manufacturer:

Fairchild Semiconductor

File Size:

597.16 KB

Description:

500V N-Channel MOSFET

Features

* 1.6A, 500V, RDS(on) = 5.3Ω @VGS = 10 V Low gate charge ( typical 6.0 nC) Low Crss ( typical 4.0 pF) Fast switching 100% avalanche tested Improved dv/dt capability D D ! " G! G S ! " " " D-PAK FQD Series I-PAK G D S FQU Series ! S Ab
