FQD5N20L 200V N-Channel MOSFET

This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance, and to provide superior switching performance and high avalanche energy .

FQD5N20L Features

* 3.8 A, 200 V, RDS(on) = 1.2 Ω (Max.) @ VGS = 10 V, ID = 1.9 A

* Low Gate Charge (Typ. 4.8 nC)

* Low Crss (Typ. 6.0 pF)

* 100% Avalanche Tested

* RoHS Compliant D D G S D-PAK G S Absolute Maximum Ratings TC = 25°C unless otherwise noted. Symbol VDSS I

FQD5N20L_FairchildSemiconductor.pdf

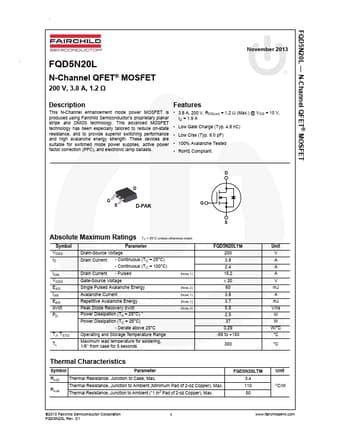

Preview of FQD5N20L PDF
