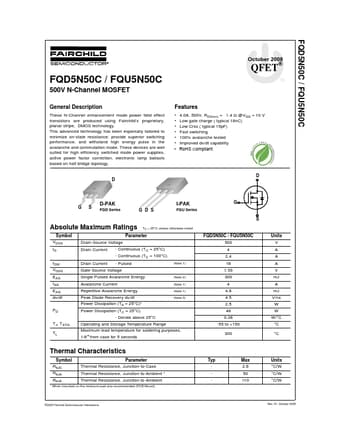

FQD5N50C Datasheet, Mosfet, Fairchild Semiconductor

FQD5N50C Features

• Mosfet
• 4.0A, 500V, RDS(on) = 1.4 Ω @VGS = 10 V
• Low gate charge ( typical 18nC)
• Low Crss ( typical 15pF)
• Fast switching
• 100% avalanche tested <

PDF File Details

Part number:

FQD5N50C

Manufacturer:

Fairchild Semiconductor

File Size:

660.61kb

Download:

📄 Datasheet

Description:

500v n-channel mosfet. These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS techn

TAGS

FQD5N50C

Fairchild Semiconductor
