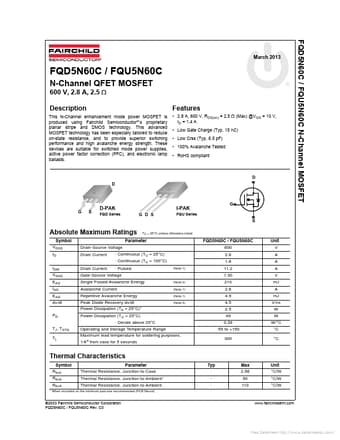

FQD5N60C Datasheet, Mosfet, Fairchild Semiconductor

FQD5N60C Features

• Mosfet
• 2.8 A, 600 V, RDS(on) = 2.5 Ω (Max) @VGS = 10 V, ID = 1.4 A
• Low Gate Charge (Typ. 15 nC)
• Low Crss (Typ. 6.5 pF)
• 100% Avalanche Tested
• R

PDF File Details

Part number:

FQD5N60C

Manufacturer:

Fairchild Semiconductor

File Size:

975.65kb

Download:

📄 Datasheet

Description:

600v n-channel mosfet. FQD5N60C / FQU5N60C Features

2.8 A, 600 V, RDS(on) = 2.5 Ω (Max) @VGS = 10 V, ID = 1.4 A

Low Gate Charge (Typ.
