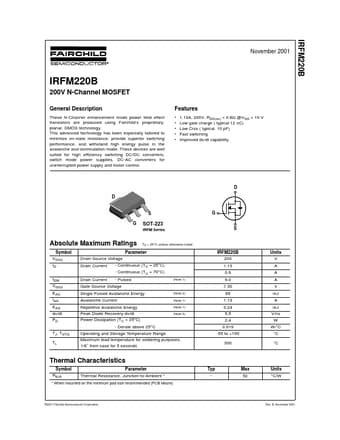

IRFM220B MOSFET Datasheet - Fairchild Semiconductor

IRFM220B Features

Mosfet
1.13A, 200V, RDS(on) = 0.8Ω @VGS = 10 V Low gate charge ( typical 12 nC) Low Crss ( typical 10 pF) Fast switching Improved dv/dt capabi

PDF File Details

Part number:

IRFM220B

Manufacturer:

Fairchild Semiconductor

File Size:

727.80kb

Download:

📄 Datasheet

Description:

200v n-channel mosfet. These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology.

📥 Download PDF (727.80kb)
