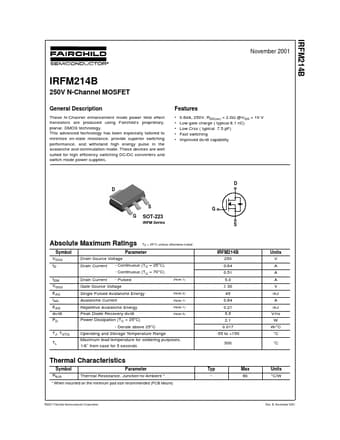

IRFM214B Datasheet, Mosfet, Fairchild Semiconductor

IRFM214B Features

• Mosfet
• 0.64A, 250V, RDS(on) = 2.0Ω @VGS = 10 V Low gate charge ( typical 8.1 nC) Low Crss ( typical 7.5 pF) Fast switching Improved dv/dt capa

PDF File Details

Part number:

IRFM214B

Manufacturer:

Fairchild Semiconductor

File Size:

692.70kb

Download:

📄 Datasheet

Description:

250v n-channel mosfet. These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology.
