IRFM224B Datasheet, Mosfet, Fairchild Semiconductor

IRFM224B Features

  • Mosfet
  • 0.92A, 250V, RDS(on) = 1.1Ω @VGS = 10 V Low gate charge ( typical 13.5 nC) Low Crss ( typical 9.5 pF) Fast switching Improved dv/dt cap

PDF File Details

Part number:

IRFM224B

Manufacturer:

Fairchild Semiconductor

File Size:

705.98kb

Download:

📄 Datasheet

Description:

250v n-channel mosfet. These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology.

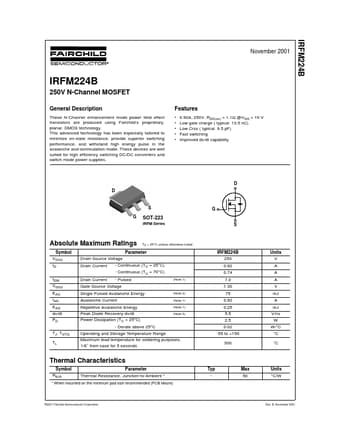

Datasheet Preview: IRFM224B 📥 Download PDF (705.98kb)
Page 2 of IRFM224B Page 3 of IRFM224B
