SFR9014 Advanced Power MOSFET

SFR9014 Description

Advanced Power MOSFET .

SFR9014 Features

* n Avalanche Rugged Technology n Rugged Gate Oxide Technology n Lower Input Capacitance n Improved Gate Charge n Extended Safe Operating Area n Lower Leakage Current : 10 µA (Max. ) @ VDS = -60V n Lower RDS(ON) : 0.362 Ω (Typ. ) SFR/U9014 BVDSS = -60 V RDS(on) = 0.5 Ω ID = -5.3 A D-PAK 2 1 3 1 I-PAK

📥 Download Datasheet

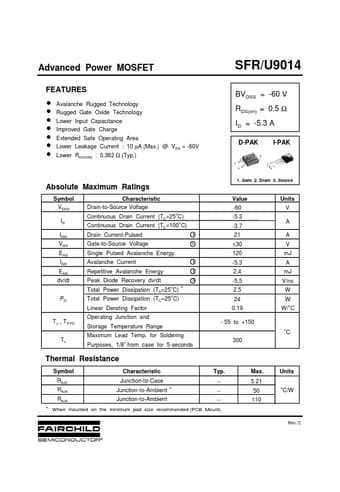

Preview of SFR9014 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SFR9014
Manufacturer
Fairchild Semiconductor
File Size
228.74 KB
Datasheet
SFR9014_FairchildSemiconductor.pdf
Description
Advanced Power MOSFET
