SFR9024 Advanced Power MOSFET

SFR9024 Description

Advanced Power MOSFET .

SFR9024 Features

* n Avalanche Rugged Technology n Rugged Gate Oxide Technology n Lower Input Capacitance n Improved Gate Charge n Extended Safe Operating Area n Lower Leakage Current : 10 µA (Max. ) @ VDS = -60V n Lower RDS(ON) : 0.206 Ω (Typ. ) SFR/U9024 BVDSS = -60 V RDS(on) = 0.28 Ω ID = -7.8 A D-PAK 2 1 3 1 I-PAK

📥 Download Datasheet

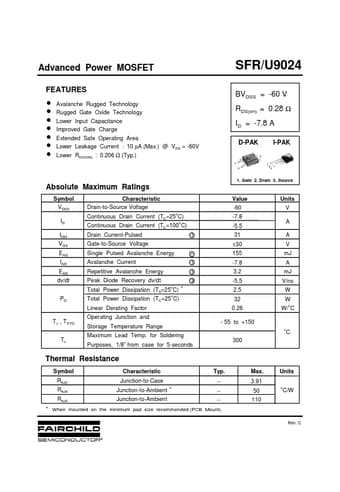

Preview of SFR9024 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SFR9024
Manufacturer
Fairchild Semiconductor
File Size
230.52 KB
Datasheet
SFR9024_FairchildSemiconductor.pdf
Description
Advanced Power MOSFET
