SFR9120 - Advanced Power MOSFET

Name: SFR9120
SKU: SFR9120-486978

Fairchild Semiconductor

The SFR9120 by Fairchild Semiconductor is a Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SFR9120
Manufacturer	Fairchild Semiconductor
File Size	228.72 KB
Description	Advanced Power MOSFET
Datasheet	SFR9120_FairchildSemiconductor.pdf

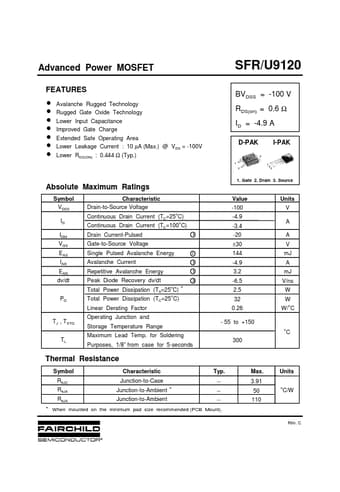

Additional preview pages of the SFR9120 datasheet.

n Avalanche Rugged Technology n Rugged Gate Oxide Technology n Lower Input Capacitance n Improved Gate Charge n Extended Safe Operating Area n Lower Leakage Current : 10 µA (Max. ) @ VDS = -100V n Lower RDS(ON) : 0.444 Ω (Typ. ) SFR/U9120 BVDSS = -100 V RDS(on) = 0.6 Ω ID = -4.9 A D-PAK 2 1 3 1 I-PAK 2 3 1. Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25 C) Continuous Drain Cur.
