SFR9034 Advanced Power MOSFET

SFR9034 Description

Advanced Power MOSFET .

SFR9034 Features

* ν Avalanche Rugged Technology ν Rugged Gate Oxide Technology ν Lower Input Capacitance ν Improved Gate Charge ν Extended Safe Operating Area ν Lower Leakage Current : 10 µA (Max. ) @ VDS = -60V ν Lower RDS(ON) : 0.106 Ω (Typ. ) SFR/U9034 BVDSS = -60 V RDS(on) = 0.14 Ω ID = -14 A D-PAK 2 1 3 1 I-PAK

📥 Download Datasheet

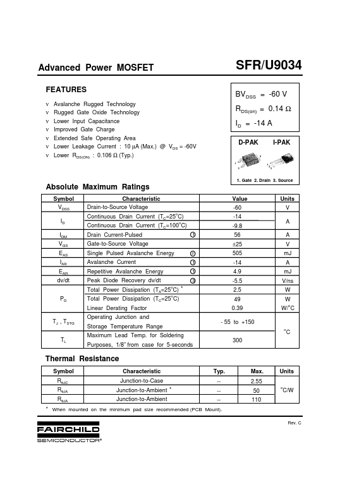

Preview of SFR9034 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SFR9034
Manufacturer
Fairchild Semiconductor
File Size
238.11 KB
Datasheet
SFR9034_FairchildSemiconductor.pdf
Description
Advanced Power MOSFET
