SFR9130 Advanced Power MOSFET

SFR9130 Description

www.DataSheet4U.com Advanced Power MOSFET .

SFR9130 Features

* Avalanche Rugged Technology Rugged Gate Oxide Technology Lower Input Capacitance Improved Gate Charge Extended Safe Operating Area Lower Leakage Current : 10 µA (Max. ) @ VDS = -100V Lower RDS(ON) : 0.225 Ω (Typ. ) 1 SFR/U9130 BVDSS = -100 V RDS(on) = 0.3 Ω ID = -9.8 A D-PAK 2 1 3 I-PAK 2 3 1. Ga

📥 Download Datasheet

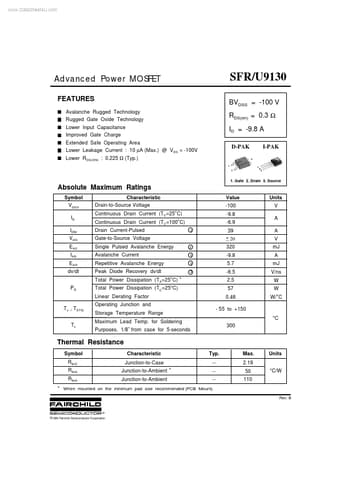

Preview of SFR9130 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SFR9130
Manufacturer
Fairchild Semiconductor
File Size
287.90 KB
Datasheet
SFR9130_FairchildSemiconductor.pdf
Description
Advanced Power MOSFET
