SFR9110 Advanced Power MOSFET

SFR9110 Description

Advanced Power MOSFET .

SFR9110 Features

* n Avalanche Rugged Technology n Rugged Gate Oxide Technology n Lower Input Capacitance n Improved Gate Charge n Extended Safe Operating Area n Lower Leakage Current : 10 µA (Max. ) @ VDS = -100V n Lower RDS(ON) : 0.912 Ω (Typ. ) SFR/U9110 BVDSS = -100 V RDS(on) = 1.2 Ω ID = -2.8 A D-PAK 2 1 3 1 I-PA

📥 Download Datasheet

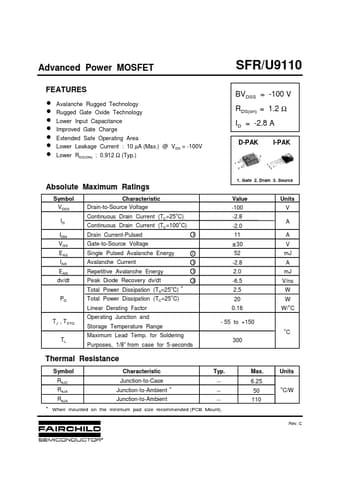

Preview of SFR9110 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SFR9110
Manufacturer
Fairchild Semiconductor
File Size
253.24 KB
Datasheet
SFR9110_FairchildSemiconductor.pdf
Description
Advanced Power MOSFET
