NDP5060L Datasheet, Transistor, Fairchild

NDP5060L Features

  • Transistor 26 A, 60 V. RDS(ON) = 0.05 Ω @ VGS= 5 V RDS(ON) = 0.035 Ω @ VGS= 10 V. Critical DC electrical parameters specified at elevated temperature. Rugged internal source-drain diode can elimin

PDF File Details

Part number:

NDP5060L

Manufacturer:

Fairchild

File Size:

358.96kb

Download:

📄 Datasheet

Description:

N-channel logic level enhancement mode field effect transistor. These logic level N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell den

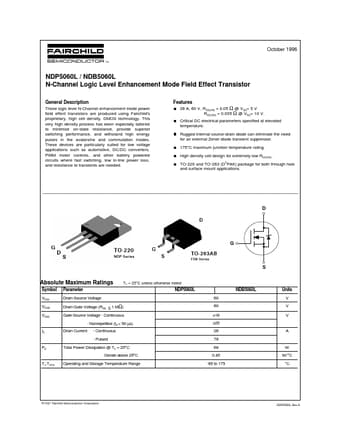

Datasheet Preview: NDP5060L 📥 Download PDF (358.96kb)
Page 2 of NDP5060L Page 3 of NDP5060L

NDP5060L Application

  • Applications such as automotive, DC/DC converters, PWM motor controls, and other battery powered circuits where fast switching, low in-line power lo
