NDP508B Datasheet, Transistor, Fairchild

NDP508B Features

  • Transistor 19 and 17A, 80V. RDS(ON) = 0.08 and 0.10Ω. Critical DC electrical parameters specified at elevated temperature. Rugged internal source-drain diode can eliminate the need for an external

PDF File Details

Part number:

NDP508B

Manufacturer:

Fairchild

File Size:

73.44kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode field effect transistor. These N-channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS t

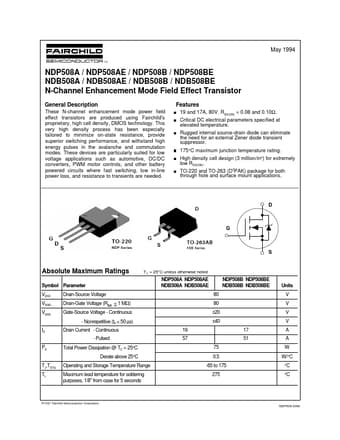

Datasheet Preview: NDP508B 📥 Download PDF (73.44kb)
Page 2 of NDP508B Page 3 of NDP508B

NDP508B Application

  • Applications such as automotive, DC/DC converters, PWM motor controls, and other battery powered circuits where fast switching, low in-line power lo
