NDS7002A - N-Channel MOSFET

Description

These N-channel enhancement mode field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

These products have been designed to minimize on-state resistance while providing rugged, reliable, and fast switching performance.

Features

  • High Density Cell Design for Low RDS(ON).
  • Voltage Controlled Small Signal Switch.
  • Rugged and Reliable.
  • High Saturation Current Capability.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDS7002A N-Channel MOSFET National Semiconductor
NDS7002A N-Channel MOSFET ON Semiconductor
NDS7000A N-Channel MOSFET National Semiconductor
NDS7175 SkyBlue Laser Diode NICHIA
NDS73P 4M x 32 bit Synchronous DRAM INSIGNIS

Other Datasheets by Fairchild (onsemi)

Part Number Description
NDS0605 P-Channel Enhancement Mode Field Effect Transistor
NDS0610 P-Channel Enhancement Mode Field Effect Transistor
NDS331N N-Channel Logic Level Enhancement Mode Field Effect Transistor
NDS332P P-Channel Logic Level Enhancement Mode Field Effect Transistor
NDS335N N-Channel Logic Level Enhancement Mode Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

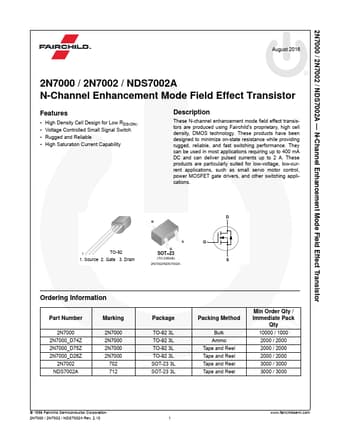

2N7000 / 2N7002 / NDS7002A — N-Channel Enhancement Mode Field Effect Transistor August 2016 2N7000 / 2N7002 / NDS7002A N-Channel Enhancement Mode Field Effect Transistor Features • High Density Cell Design for Low RDS(ON) • Voltage Controlled Small Signal Switch • Rugged and Reliable • High Saturation Current Capability Description These N-channel enhancement mode field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. These products have been designed to minimize on-state resistance while providing rugged, reliable, and fast switching performance. They can be used in most applications requiring up to 400 mA DC and can deliver pulsed currents up to 2 A.
