LMA406

LOW NOISE PHEMT MMIC

LMA406 Features

* 18 GHz to 40 GHz Frequency Band 4.5 dB Noise Figure 12dB Gain 14 dBm Output Power at Saturation +3 V Single Bias Supply LMA406

* DESCRIPTION AND APPLICATIONS The Filtronic Solid State LMA406 is a low noise PHEMT amplifier that operates fro

LMA406 General Description

AND APPLICATIONS The Filtronic Solid State LMA406 is a low noise PHEMT amplifier that operates from 18 to 40GHz. This 2-stage amplifier provides 12dB nominal gain with 4.5dB typical noise figure and 1-dB gain compression power output of +10dBm that is designed for commercial mmW (millimeter-wave) PC.

LMA406 Datasheet (159.45 KB)

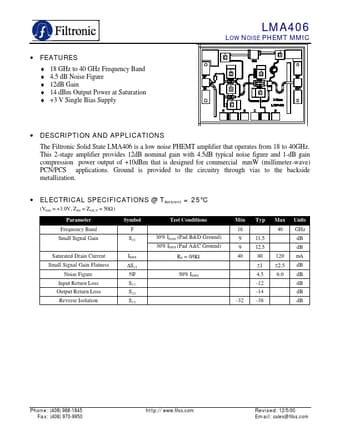

Preview of LMA406 PDF

Datasheet Details

Part number:

LMA406

Manufacturer:

Filtronic Compound Semiconductors

File Size:

159.45 KB

Description:

Low noise phemt mmic.
