LMA422

LOW NOISE PHEMT MMIC

LMA422 Features

* 26 GHz to 30 GHz Frequency Band 3.0 dB Noise Figure 22 dB Gain 5 dBm Output Power at Saturation +3 V Single Bias Supply LMA422

* DESCRIPTION AND APPLICATIONS The Filtronic Solid State LMA422 is a low noise PHEMT amplifier that operates fro

LMA422 General Description

AND APPLICATIONS The Filtronic Solid State LMA422 is a low noise PHEMT amplifier that operates from 26 to 30GHz. This 3-stage reactively matched amplifier provides 22 dB nominal gain with 3dB typical noise figure and saturated power output of +5dBm. The LMA422 is designed for commercial LMDS (Local .

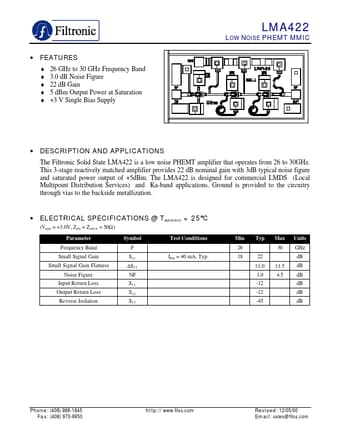

LMA422 Datasheet (157.27 KB)

Preview of LMA422 PDF

Datasheet Details

Part number:

LMA422

Manufacturer:

Filtronic Compound Semiconductors

File Size:

157.27 KB

Description:

Low noise phemt mmic.
