LMA419

LOW NOISE PHEMT MMIC

LMA419 Features

* 18 GHz to 22 GHz Frequency Band 2.5 dB Noise Figure 22 dB Gain 5 dBm Output Power at Saturation 12 dB Input/Output Return Loss +3 V Single Bias Supply LMA419

* DESCRIPTION AND APPLICATIONS The Filtronic Solid State LMA419 is a lo

LMA419 General Description

AND APPLICATIONS The Filtronic Solid State LMA419 is a low noise PHEMT amplifier that operates from 18 to 22GHz. This 3-stage reactively matched amplifier provides 22dB nominal gain with 2.5dB typical noise figure and saturated power output of +5dBm The LMA419 is designed for commercial mm-W (millim.

LMA419 Datasheet (138.99 KB)

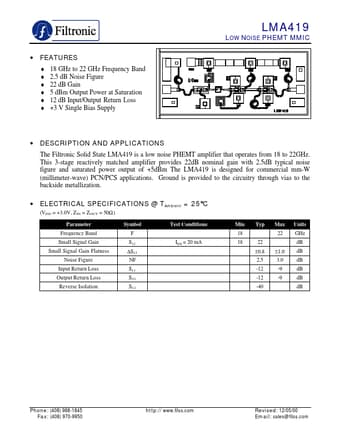

Preview of LMA419 PDF

Datasheet Details

Part number:

LMA419

Manufacturer:

Filtronic Compound Semiconductors

File Size:

138.99 KB

Description:

Low noise phemt mmic.
