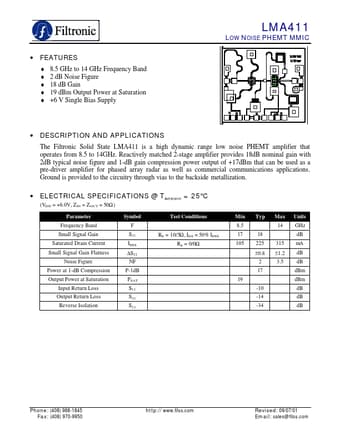

LMA411 Datasheet, Mmic, Filtronic Compound Semiconductors

LMA411 Features

• Mmic
• 8.5 GHz to 14 GHz Frequency Band 2 dB Noise Figure 18 dB Gain 19 dBm Output Power at Saturation +6 V Single Bias Supply LMA411
<

PDF File Details

Part number:

LMA411

Manufacturer:

Filtronic Compound Semiconductors

File Size:

169.10kb

Download:

📄 Datasheet

Description:

Low noise phemt mmic. AND APPLICATIONS The Filtronic Solid State LMA411 is a high dynamic range low noise PHEMT amplifier that operates from 8.5 to 14GHz.

LMA411 Application

• Applications The Filtronic Solid State LMA411 is a high dynamic range low noise PHEMT amplifier that operates from 8.5 to 14GHz. Reactively matched
