LMA420 Datasheet, Mmic, Filtronic Compound Semiconductors

LMA420 Features

• Mmic
• 21 GHz to 24 GHz Frequency Band 3 dB Noise Figure 22 dB Gain 5 dBm Output Power at Saturation 12 dB Input/Output Return Loss

PDF File Details

Part number:

LMA420

Manufacturer:

Filtronic Compound Semiconductors

File Size:

135.62kb

Download:

📄 Datasheet

Description:

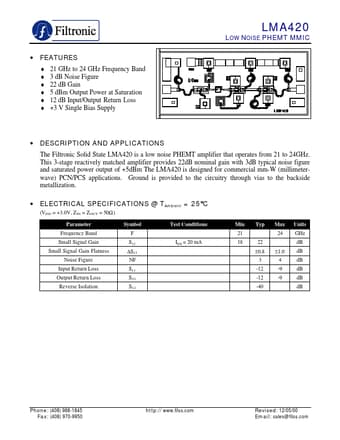

Low noise phemt mmic. AND APPLICATIONS The Filtronic Solid State LMA420 is a low noise PHEMT amplifier that operates from 21 to 24GHz. This 3-stage reactiv

LMA420 Application

• Applications The Filtronic Solid State LMA420 is a low noise PHEMT amplifier that operates from 21 to 24GHz. This 3-stage reactively matched amplifi
