LMA417 - MEDIUM POWER PHEMT MMIC

The LMA417 by Filtronic Compound Semiconductors is a MEDIUM POWER PHEMT MMIC. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the LMA417 MEDIUM POWER PHEMT MMIC datasheet (Filtronic Compound Semiconductors).

Datasheet Details

Part number LMA417
Manufacturer Filtronic Compound Semiconductors
File Size 175.10 KB
Description MEDIUM POWER PHEMT MMIC
Datasheet download datasheet LMA417_FiltronicCompoundSemiconductors.pdf

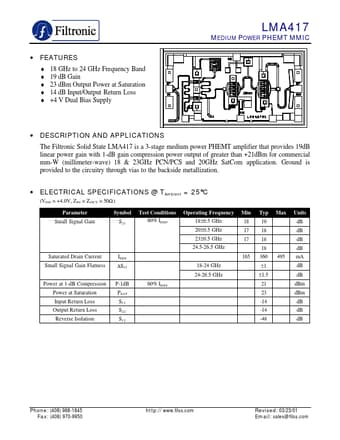

Additional preview pages of the LMA417 datasheet.

LMA417 Product details

Description

AND APPLICATIONS The Filtronic Solid State LMA417 is a 3-stage medium power PHEMT amplifier that provides 19dB linear power gain with 1-dB gain compression power output of greater than +21dBm for commercial mm-W (millimeter-wave) 18 & 23GHz PCN/PCS and 20GHz SatCom application. ELECTRICAL SPECIFICATIONS @ TAmbient = 25 ° C (VDD = +4.0V, ZIN = ZOUT = 50Ω ) Parameter Small Signal Gain Symbol S21 Test Condit

Features
