LMA421 Datasheet, Mmic, Filtronic Compound Semiconductors

LMA421 Features

• Mmic
• 36 GHz to 40 GHz Frequency Band 4.5 dB Noise Figure 22 dB Gain 5 dBm Output Power at Saturation 12 dB Input/Output Return Los

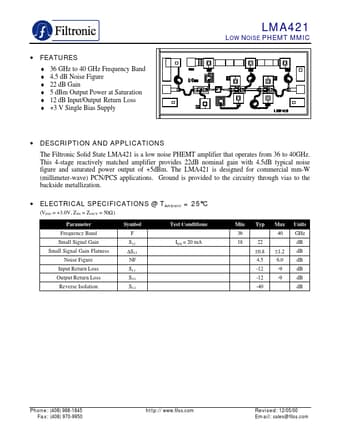

PDF File Details

Part number:

LMA421

Manufacturer:

Filtronic Compound Semiconductors

File Size:

129.85kb

Download:

📄 Datasheet

Description:

Low noise phemt mmic. AND APPLICATIONS The Filtronic Solid State LMA421 is a low noise PHEMT amplifier that operates from 36 to 40GHz. This 4-stage reactiv

LMA421 Application

• Applications The Filtronic Solid State LMA421 is a low noise PHEMT amplifier that operates from 36 to 40GHz. This 4-stage reactively matched amplifi
