FP6600 - USB Dedicated Charging Port Controller

FP6600 Description

: 18948314942 QQ: 1094642907 fitipower integrated technology lnc.FP6600 USB Dedicated Charging Port Controller with QC 2.0 Fast Charging Function .
The FP6600 is a fast charge protocol controller and follows Quick Charge 2.

FP6600 Features

* Input Voltage Range from 4V to 6V.
* Fully Supports Quick Charge 2.0 specification:
* Class A: 5V/9V/12V Output Voltage.
* Class B : 5V/9V/12V/20V Output Voltage.
* Supports USB DCP Shorting D+ Line to D- Line per USB Battery Charging Specification, Revision 1.2.
* Meets Ch

FP6600 Applications

* Wall-Adapter / Power Plugs, Outlets
* Mobile / Tablet Power Bank
* Car Charger
* USB Power Output Ports Pin Assignments SO Package(SOP-8) GND 1 VSEN1 2 VSEN2 3 VSEN3 4 8 VDD 7 VREF 6 D+ 5 D- Figure 1. Pin Assignment of FP6600 Ordering Information FP6600

📥 Download Datasheet

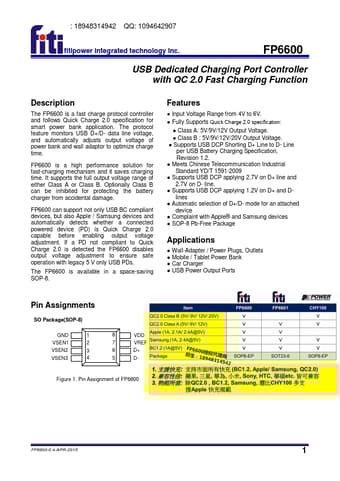

Preview of FP6600 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FP6600
Manufacturer
Fitipower
File Size
555.58 KB
Datasheet
FP6600-Fitipower.pdf
Description
USB Dedicated Charging Port Controller
