FP6601Q - USB Dedicated Charging Port Controller

FP6601Q Description

FP6601Q USB Dedicated Charging Port Controller for Fast Charging Protocol and QC 2.0/3.0 .
The FP6601Q is a fast charging protocol controller for HiSilicon Fast Charging Protocol (FCP) and Qualcomm® Quick ChargeTM 2.

FP6601Q Features

* Supports HiSilicon Fast Charging Protocol (FCP)
* Supports Qualcomm® Quick ChargeTM 2.0/3.0 Class A : 3.6V up to 12V Output Voltage
* Automatically Selects FCP and QC2.0/3.0 Protocols
* Supports USB DCP Shorting D+ Line to D
* Line per USB Battery Charging Specification, Rev

FP6601Q Applications

* Wall-Adapter, Smart Phones, Tablets, Notebooks
* Mobile / Tablet Power Bank
* Car Charger
* USB Power Output Ports Pin Assignments S6B Package(SOT-23-6) Figure 1. Pin Assignment of FP6601Q Ordering Information FP6601Q
* Package Type S6B: SOT-23-6 SOT-23-6 Marking Part Num

📥 Download Datasheet

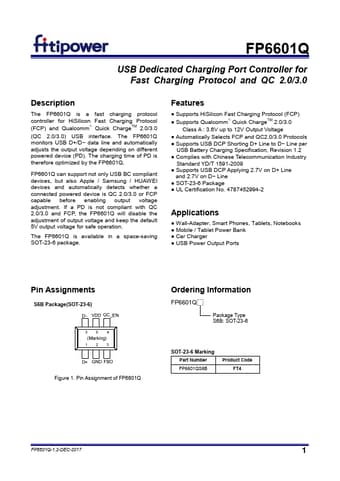

Preview of FP6601Q PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FP6601Q
Manufacturer
Fitipower
File Size
274.18 KB
Datasheet
FP6601Q-Fitipower.pdf
Description
USB Dedicated Charging Port Controller
