FP6606AC - USB Dual Ports Charging Controller

FP6606AC Description

FP6606AC USB Dual Ports Charging Controller USB-PD/HVDCP for Type-C and HVDCP for Type-A .
Features The FP6606AC is a simplified USB Power Delivery 3.

FP6606AC Features

* The FP6606AC is a simplified USB Power Delivery 3.0 protocol controller. It integrated functions for HiSilicon Fast Charging Protocol (FCP) and Qualcomm Quick Charge 2.0/3.0. It also supports USB Type-A and Type-C (1A1C). When 1A1C connector plug into simultaneously, output voltage will down to 5V.

FP6606AC Applications

* Wall-Adapter
* Car Charger
* Power Strip
* USB Power Output Ports Pin Assignments W4 Package TQFN-20L (3mmx3mm) SUA DNA DPA VBUS SRCGC SENA 1 FLAGA 2 GND 3 VDD 4 FBO 5 20 19 18 17 16 GND 15 VBUSC 14 CC1 13 CC2 12 DPC 11 DNC 6 7 8 9 10 N3 Package SSOP-20L DPA 1 20 DNA

📥 Download Datasheet

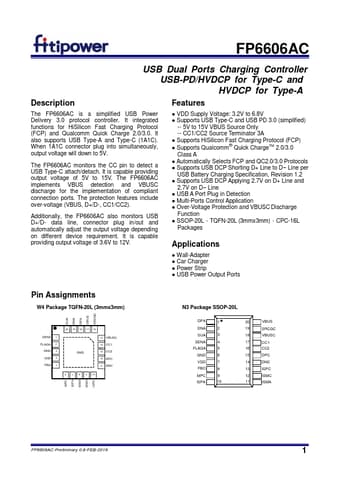

Preview of FP6606AC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FP6606AC
Manufacturer
Fitipower
File Size
561.56 KB
Datasheet
FP6606AC-Fitipower.pdf
Description
USB Dual Ports Charging Controller
