MPXM2010 Datasheet - Freescale Semiconductor

MPXM2010 - 10 kPa On-Chip Temperature Compensated & Calibrated Silicon Pressure Sensors

www.DataSheet4U.com Freescale Semiconductor Technical Data MPXM2010 Rev 4, 09/2005 10 kPa On-Chip Temperature Compensated & Calibrated Silicon Pressure Sensors The MPXM2010 device is a silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure.

The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip.

The chip is laser trimmed for prec

MPXM2010 Features

* Temperature Compensated Over 0°C to +85°C Available in Easy-to-Use Tape & Reel Ratiometric to Supply Voltage Gauge Ported & Non Ported Options MPXM2010 SERIES FREESCALE PREFERRED DEVICE 0 to 10 kPa (0 to 1.45 psi) 25 mV FULL SCALE SPAN (TYPICAL) Application

MPXM2010_FreescaleSemiconductor.pdf

Preview of MPXM2010 PDF

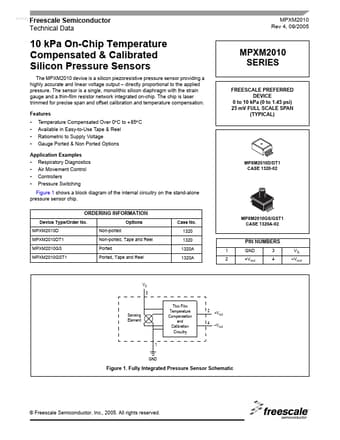

MPXM2010 Datasheet Preview Page 2 MPXM2010 Datasheet Preview Page 3

Datasheet Details

Part number:

MPXM2010

Manufacturer:

Freescale Semiconductor

File Size:

285.80 KB

Description:

10 kpa on-chip temperature compensated & calibrated silicon pressure sensors.
