MPXM2051G

Pressure Sensor

MPXM2051G Features

* Ratiometric to supply voltage

* Available in easy-to-use Tape & Reel

* Temperature compensated over 0 °C to +85 °C

* Gauge ported 3 Applications

* Level indicators

* Medical diagnostics

* Robotics

* Pressure switching

* Pump

MPXM2051G General Description

The MPXM2051G device is a silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The ch.

MPXM2051G Datasheet (300.96 KB)

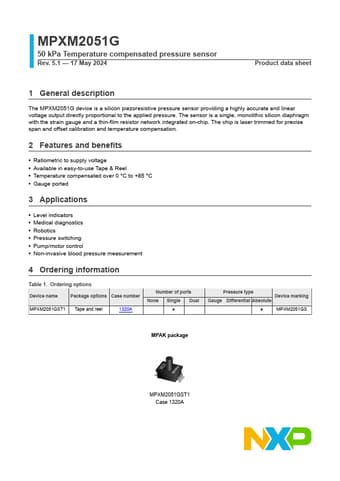

Preview of MPXM2051G PDF

Datasheet Details

Part number:

MPXM2051G

Manufacturer:

NXP ↗

File Size:

300.96 KB

Description:

Pressure sensor.
