MPXM2102 Datasheet - Freescale Semiconductor

MPXM2102 - 100 kPa On-Chip Temperature Compensated & Calibrated Silicon Pressure Sensors

www.DataSheet4U.com Freescale Semiconductor Technical Data MPXM2102 Rev 4, 09/2005 100 kPa On-Chip Temperature Compensated & Calibrated Silicon Pressure Sensors The MPXM2102 device is a silicon piezoresistive pressure sensors providing a highly accurate and linear voltage output - directly proportional to the applied pressure.

The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip.

The chip is laser trimmed for precise sp

MPXM2102 Features

* Temperature Compensated Over 0°C to +85°C Available in Easy-to-Use Tape & Reel Ratiometric to Supply Voltage Gauge Ported and Non Ported Options MPXM2102 SERIES COMPENSATED AND CALIBRATED PRESSURE SENSOR 0 TO 100 kPA (0 TO 14.5 psi) 40 mV FULL SCALE SPAN (TYP

MPXM2102_FreescaleSemiconductor.pdf

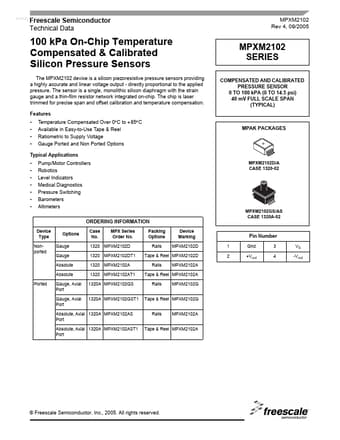

Preview of MPXM2102 PDF
MPXM2102 Datasheet Preview Page 2 MPXM2102 Datasheet Preview Page 3

Datasheet Details

Part number:

MPXM2102

Manufacturer:

Freescale Semiconductor

File Size:

288.43 KB

Description:

100 kpa on-chip temperature compensated & calibrated silicon pressure sensors.
