MPXM2053 Datasheet - Freescale Semiconductor

MPXM2053 - 50 kPa On-Chip Temperature Compensated and Calibrated Silicon Pressure Sensors

www.DataSheet4U.com Freescale Semiconductor Technical Data Document Number: MPXM2053 Rev 5.0, 05/2006 50 kPa On-Chip Temperature Compensated and Calibrated Silicon Pressure Sensors The MPXM2053 device is a silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output - directly proportional to the applied pressure.

The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip.

The chip is laser tri

MPXM2053 Features

* Temperature Compensated Over 0°C to +85°C Available in Easy-to-Use Tape & Reel Ratiometric to Supply Voltage Gauge Ported and Non Ported Options MPXM2053 SERIES COMPENSATED AND CALIBRATED PRESSURE SENSOR 0 TO 50 kPA (0 TO 7.25 psi) 40 mV FULL SCALE SPAN (TYPI

MPXM2053_FreescaleSemiconductor.pdf

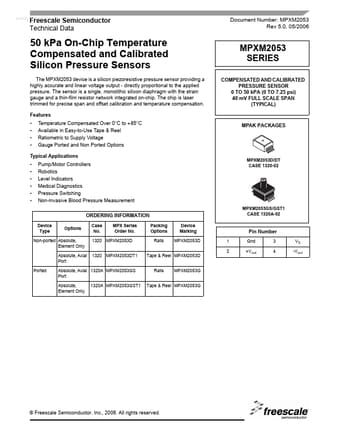

Preview of MPXM2053 PDF
MPXM2053 Datasheet Preview Page 2 MPXM2053 Datasheet Preview Page 3

Datasheet Details

Part number:

MPXM2053

Manufacturer:

Freescale Semiconductor

File Size:

252.83 KB

Description:

50 kpa on-chip temperature compensated and calibrated silicon pressure sensors.
