MPXM2051GST1, MPXM2051G Datasheet - NXP

MPXM2051GST1 Pressure Sensor

The MPXM2051G device is a silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The ch.

MPXM2051GST1 Features

* Ratiometric to supply voltage

* Available in easy-to-use Tape & Reel

* Temperature compensated over 0 °C to +85 °C

* Gauge ported 3 Applications

* Level indicators

* Medical diagnostics

* Robotics

* Pressure switching

* Pump

MPXM2051G-NXP.pdf

This datasheet PDF includes multiple part numbers: MPXM2051GST1, MPXM2051G. Please refer to the document for exact specifications by model.

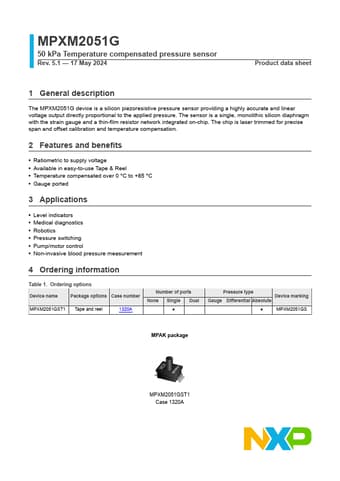

MPXM2051GST1 Datasheet Preview Page 2 MPXM2051GST1 Datasheet Preview Page 3

Datasheet Details

Part number:

MPXM2051GST1, MPXM2051G

Manufacturer:

NXP ↗

File Size:

300.96 KB

Description:

Pressure sensor.

Note:

This datasheet PDF includes multiple part numbers: MPXM2051GST1, MPXM2051G.
Please refer to the document for exact specifications by model.
