MPXM2202 200 KPA ON CHIP TEMPERATURE COMPENSATED & CALIBRATED SILICON PRESSURE SENSORS

www.DataSheet4U.com SEMICONDUCTOR TECHNICAL DATA MOTOROLA Freescale Semiconductor, Inc. Order this document by MPXM2202/D 200 kPa On-Chip Temperature Compensated & Calibrated Silicon Pressure Sensors The MPXM2202 device is a silicon piezoresistive pressure sensors providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin film resistor network inte.

MPXM2202 Features

* Temperature Compensated Over 0°C to +85°C

* Available in Easy-to-Use Tape & Reel

* Ratiometric to Supply Voltage

* Gauge Ported & Non Ported Options Application Examples

* Pump/Motor Controllers

* Robotics

* Level Indicators

* Medical

MPXM2202 Datasheet (274.88 KB)

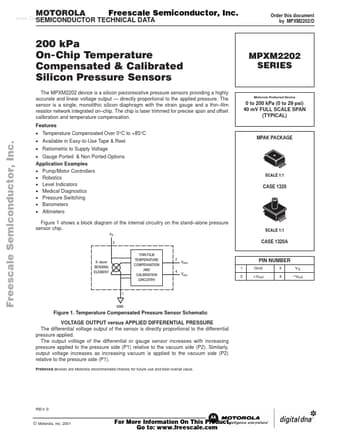

MPXM2202 Datasheet Preview — Preview of MPXM2202 PDF

Datasheet Details

Part number:

MPXM2202

Manufacturer:

Motorola

File Size:

274.88 KB

Description:

200 kpa on chip temperature compensated & calibrated silicon pressure sensors.
