MPXM2202D, MPX2202 Datasheet - Freescale Semiconductor

MPXM2202D Silicon Pressure Sensors

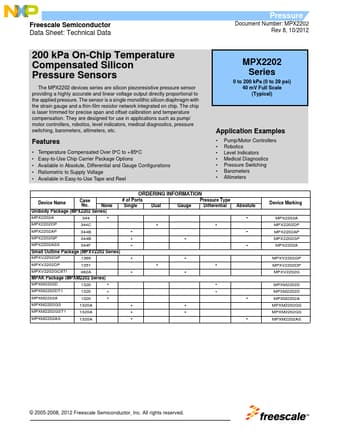

Freescale Semiconductor Data Sheet: Technical Data Pressure Document Number: MPX2202 Rev 8, 10/2012 200 kPa On-Chip Temperature Compensated Silicon Pressure Sensors The MPX2202 devices series are silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on chip. The chip is laser trimmed for preci.

MPXM2202D Features

* Temperature Compensated Over 0C to +85C

* Easy-to-Use Chip Carrier Package Options

* Available in Absolute, Differential and Gauge Configurations

* Ratiometric to Supply Voltage

* Available in Easy-to-Use Tape and Reel MPX2202 Series 0 to 200 kPa (0 to 29

MPX2202-FreescaleSemiconductor.pdf

MPXM2202D Datasheet Preview — This datasheet PDF includes multiple part numbers: MPXM2202D, MPX2202. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MPXM2202D, MPX2202

Manufacturer:

Freescale Semiconductor

File Size:

374.23 KB

Description:

Silicon pressure sensors.

Note:

This datasheet PDF includes multiple part numbers: MPXM2202D, MPX2202.
Please refer to the document for exact specifications by model.
