MMDT4413 - Small Surface Mount Transistor

MMDT4413 Description

Production specification Small Surface Mount Transistor .

MMDT4413 Features

* Complementary pair.
* Ideal for low power amplification and switching.
* Ultra-Small surface mount package.

MMDT4413 Applications

* General switching and amplification. ORDERING INFORMATION Type No. MMDT4413 Marking K13 SOT-363 Package Code SOT-363 MAXIMUM RATING NPN 4401 Section @ Ta=25℃ unless otherwise specified SYMBOL PARAMETER VALUE UNIT VCBO collector-base voltage 60 V VCEO collector-emitter voltage 40

📥 Download Datasheet

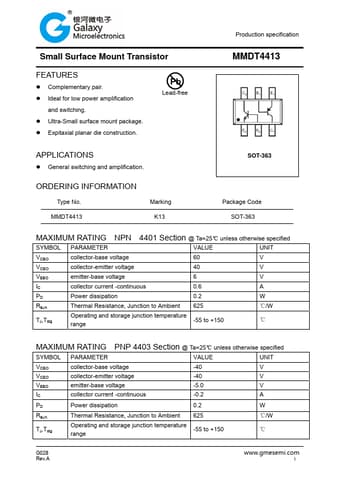

Preview of MMDT4413 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMDT4413
Manufacturer
GME
File Size
351.75 KB
Datasheet
MMDT4413-GME.pdf
Description
Small Surface Mount Transistor
